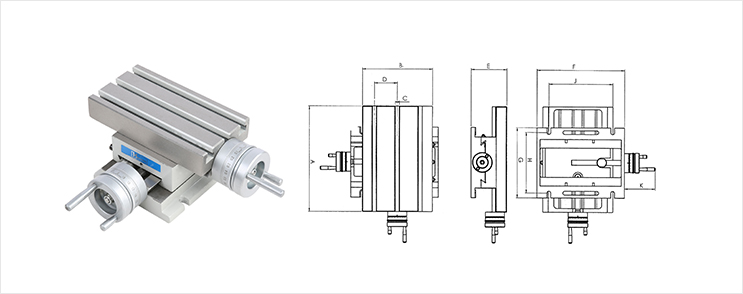

CROSS SLIDE TABLE
Parallism:0.03/100mm
Squareness: 0.05/100mm
Order Code
3002- |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
H
mm |
J
mm |
K
mm |
X Travel
mm |
Y Travel
mm |
Qty/Ctn |
Packing
cm |
NW/GW
kg |
| 6101 |
185 |
100 |
10 |
35 |
102 |
170 |
130 |
115 |
100 |
96 |
80 |
50 |
1 |
28x28x17 |
2016-10-11 |
| 6102 |
225 |
175 |
12 |
72 |
108 |
225 |
175 |
148 |
160 |
96 |
105 |
90 |
1 |
36X36X20 |
16/17 |
| 6103 |
330 |
220 |
12 |
72 |
115 |
275 |
220 |
190 |
200 |
96 |
190 |
100 |
1 |
41X36X18 |
23/26 |
| 6104 |
425 |
240 |
12 |
72 |
125 |
335 |
276 |
240 |
245 |
144 |
225 |
150 |
1 |
60X44X18 |
41/45 |
| 6105 |
600 |
240 |
12 |
72 |
125 |
335 |
276 |
240 |
245 |
144 |
400 |
150 |
1 |
77X44X18 |
51/56 |
Order Code
3002- |
A
(inches) |
B
(inches) |
C
(inches) |
D
(inches) |
E
(inches) |
F
(inches) |
G
(inches) |
H
(inches) |
J
(inches) |
K
(inches) |
X Travel
(inches) |
Y Travel
(inches) |
| 6101 |
7" |
4“ |
0.4" |
1.38" |
4" |
6.7" |
5.1" |
4.5" |
4" |
3.8" |
3" |
2" |
| 6102 |
9" |
7” |
0.5" |
2.83" |
4.25" |
9" |
7" |
5.8" |
6" |
3.8" |
4.1" |
3.5" |
| 6103 |
13" |
8.7” |
0.5" |
2.83" |
4.52" |
11" |
9" |
7.5" |
7.9" |
3.8" |
7.5" |
4“ |
| 6104 |
17“ |
9.4" |
0.5" |
2.83" |
5" |
13" |
11" |
9.4" |
9.6" |
5.7" |
9" |
6“ |
| 6105 |
24” |
9.4: |
0.5" |
2.83" |
5" |
13" |
11" |
9.4" |
9.6" |
5.7" |
16" |
6“ |
|
