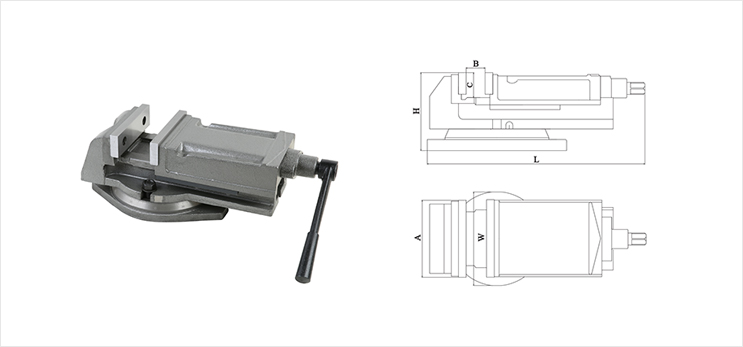

QH MACHINE VICE
Parallism:0.03/100mm
Squareness:0.03mm ?
Order code
3141- |
Width of jaw A
(mm) |
Max opening B
(mm) |
Height of jaw C
(mm) |
Length of vice L
(mm) |
Width of vice W
(mm) |
Height of vice H
(mm) |
Packing
(cm) |
G.W/N.W
(kg) |
| 0803 |
80 |
63 |
30 |
220 |
115 |
95 |
48x30x13 |
2016-8-7 |
| 0804 |
100 |
80 |
37 |
260 |
140 |
110 |
57x34x14 |
2016-12-11 |
| 0805 |
125 |
100 |
40 |
301 |
160 |
120 |
35x18x17 |
18/17 |
| 0806 |
160 |
125 |
52 |
411 |
222 |
150 |
45x24x22 |
35/34 |
| 0808 |
200 |
160 |
63 |
461 |
240 |
175 |
51x26x21 |
46/45 |
| 0810 |
250 |
200 |
63 |
520 |
260 |
180 |
52x32x21 |
70/67 |
Order code
3141- |
Width of jaw A
(inches) |
Max opening B
(inches) |
Height of jaw C
(inches) |
Length of vice L
(inches) |
Width of vice W
(inches) |
Height of vice H
(inches) |
| 0803 |
3" |
2.5" |
1.2" |
8.7" |
4.5" |
3.7" |
| 0804 |
4" |
3" |
1.5" |
10.2" |
5.5" |
4.3" |
| 0805 |
5" |
4" |
1.6" |
12" |
6.3" |
4.7" |
| 0806 |
6" |
5" |
2" |
16.2" |
8.7" |
6" |
| 0808 |
8" |
6.3" |
2.5" |
18.1" |
9.4" |
7" |
| 0810 |
10" |
8" |
2.5" |
20.5" |
10.2" |
7.1" |
|
