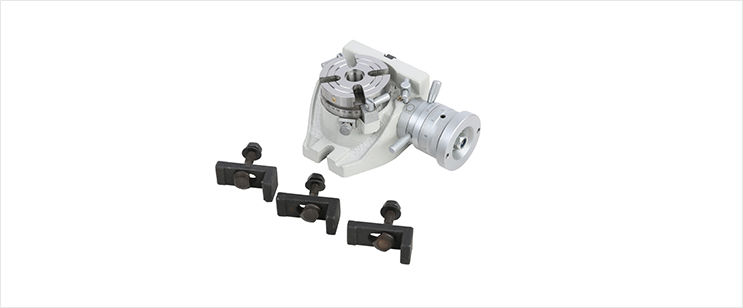

LB-TSL MINI HORIZONTAL & VERTICAL ROTARY TABLE
Specification
Diameter of Table (mm) |
3002-6207
102 |
| Height of center for verti.mounting (mm) |
54 |
| Width of the T-slot (mm) |
8 |
| Adjacent angle of table T-slot |
90o |
| Module of the worm gear |
1 |
| Transmission ratio of worm gear |
1:36 |
| Graduation of the table |
360o |
| Rotating angle of table with revolution of the worm |
10o |
| Minimum reading of the vernier |
10' |
| Max. bearing(with table horizontal) kgs |
40 |
| Max. bearing(with table vertical) kgs |
20 |
| Packing size (cm ) |
29x22x15 CM |
| G.W. (kgs) |
5 |
| N.W.(kgs) |
4 |
Specification?
Diameter of Table (inches) |
3002-6207
4" |
| Height of center for verti.mounting (inches) |
2" |
| Width of the T-slot (inches) |
0.3" |
| Adjacent angle of table T-slot |
90o |
| Module of the worm gear |
1 |
| Transmission ratio of worm gear |
1:36 |
| Graduation of the table |
360o |
| Rotating angle of table with revolution of the worm |
10o |
| Minimum reading of the vernier |
10' |
| Max. bearing(with table horizontal) lb |
88.18 |
| Max. bearing(with table vertical) lb |
44.09 |
|
